In a recent conversation with an iXsystems™ reseller in Hong Kong, the topic of Storage Tiering was brought up. We went about our banter and I brought up the inter-array tiering and the intra-array tiering piece.

After that conversation, I started thinking a lot about intra-array tiering, where data blocks within the storage array were moved between fast and slow storage media. The general policy was simple. Find all the least frequently access blocks and move them from a fast tier like the SSD tier, to a slower tier like the spinning drives with different RPM speeds. And then promote the data blocks to the faster media when accessed frequently. Of course, there were other variables in the mix besides storage media and speeds.

My mind raced back 10 years or more to my first encounter with Compellent and 3PAR. Both were still independent companies then, and I had my first taste of intra-array tiering

The original Compellent and 3PAR logos

I couldn’t recall which encounter I had first, but I remembered the time of both events were close. I was at Impact Business Solutions in their office listening to their Compellent pitch. The Kuching boys (thank you Chyr and Winston!) were very passionate in evangelizing the Compellent Data Progression technology.

At about the same time, I was invited by PTC Singapore GM at the time, Ken Chua to grace their new Malaysian office and listen to their latest storage vendor partnership, 3PAR. I have known Ken through my NetApp® days, and he linked me up Nathan Boeger, 3PAR’s pre-sales consultant. 3PAR had their Adaptive Optimization (AO) disk tiering and Dynamic Optimization (DO) technology.

Continue reading →

Not all SSDs are the same

By | | , , ,
3 Comments

Happy Lunar New Year! The Chinese around world has just ushered in the Year of the Water Dragon yesterday. To all my friends and family, and readers of my blog, I wish you a prosperous and auspicious Chinese New Year!

Over the holidays, I have been keeping up with the progress of Solid State Drives (SSDs). I am sure many of us are mesmerized by SSDs and the storage vendors are touting the best of SSDs have to offer. But let me tell you one thing – you are probably getting the least of what the best SSDs have to offer. You might be puzzled why I say things like this.

Let me share with a common sales pitch. Most (if not all) storage vendors will tout performance (usually IOPS) as the greatest benefits of SSDs. The performance numbers have to be compared to something, and that something is your regular spinning Hard Disk Drives (HDDs). The slowest SSDs in terms of IOPS is about 10-15x faster than the HDDs. A single SSD can at least churn 5,000 IOPS when compared to the fastest 15,000 RPM HDDs, which churns out about 200 IOPS (depending on HDD vendors). Therefore, the slowest SSDs can be 20-25x faster than the fastest HDDs, when measured in IOPS.

But the intent of this blogger is to share with you more about SSDs. There’s more to know because SSDs are not built the same. There are write-bias SSDs, read-bias SSDs; there are SLC (single level cell) and MLC (multi level cell) SSDs and so on. How do you differentiate them if Vendor A touts their SSDs and Vendor B touts their SSDs as well? You are not comparing SSDs and HDDs anymore. How do you know what questions to ask when they show you their performance statistics?

SNIA has recently released a set of methodology called “Solid State Storage (SSS) Performance Testing Specifications (PTS)” that helps customers evaluate and compare the SSD performance from a vendor-neutral perspective. There is also a whitepaper related to SSS PTS. This is something very important because we have to continue to educate the community about what is right and what is wrong.

In a recent webcast, the presenters from the SNIA SSS TWG (Technical Working Group) mentioned a few questions that I  think we as vendors and customers should think about when working with an SSD sales pitch. I thought I share them with you.

  • Was the performance testing done at the SSD device level or at the file system level?
  • Was the SSD pre-conditioned before the testing? If so, how?
  • Was the performance results taken at a steady state?
  • How much data was written during the testing?
  • Where was the data written to?
  • What data pattern was tested?
  • What was the test platform used to test the SSDs?
  • What hardware or software package(s) used for the testing?
  • Was the HBA bandwidth, queue depth and other parameters sufficient to test the SSDs?
  • What type of NAND Flash was used?
  • What is the target workload?
  • What was the percentage weight of the mix of Reads and Writes?
  • Are there warranty life design issue?

I thought that these questions were very relevant in understanding SSDs’ performance. And I also got to know that SSDs behave differently throughout the life stages of the device. From a performance point of view, there are 3 distinct performance life stages

  • Fresh out of the box (FOB)
  • Transition
  • Steady State



As you can see from the graph below, a SSD, fresh out of the box (FOB) displayed considerable performance numbers. Over a period of time (the graph shown minutes), it transitioned into a mezzanine stage of lower IOPS and finally, it normalized to the state called the Steady State. The Steady State is the desirable test range that will give the most accurate type of IOPS numbers. Therefore, it is important that your storage vendor’s performance numbers should be taken during this life stage.

Another consideration when understanding the SSDs’ performance numbers are what type of tests used? The test could be done at the file system level or at the device level. As shown in the diagram below, the test numbers could be taken from many different elements through the stack of the data path.



Performance for cached data would given impressive numbers but it is not accurate. File system performance will not be useful because the data travels through different layers, masking the true performance capability of the SSDs. Therefore, SNIA’s performance is based on a synthetic device level test to achieve consistency and a more accurate IOPS numbers.

There are many other factors used to determine the most relevant performance numbers. The SNIA PTS test has 4 main test suite that addresses different aspects of the SSD’s performance. They are:

  • Write Saturation test
  • Latency test
  • IOPS test
  • Throughput test

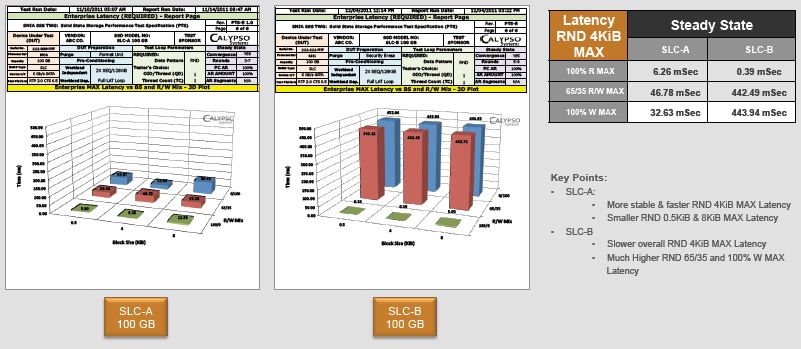

The SSS PTS would be able to reveal which is a better SSD. Here’s a sample report on latency.

Once again, it is important to know and not to take vendors’ numbers in verbatim. As the SSD market continue to grow, the responsibility lies on both side of the fence – the vendor and the customer.
