Apple chomps Anobit

A few days ago, Apple paid USD$500 million to buy an Israeli startup, Anobit, a maker of flash storage technology.

Obviously, one of the reasons Apple did so is to move up a notch to differentiate itself from the competition and positions itself as a premier technology innovator. It has won the MP3 war with its iPod, but in the smartphones, tablets and notebooks space, Apple is being challenged strongly.

Today, flash storage technology is prevalent, and the demand to pack more capacity into a small real-estate of flash will eventually lead to reliability issues. The most common type of NAND flash storage is the MLC (multi-level cells) versus the more expensive type called SLC (single level cells).

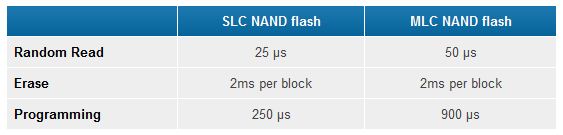

But physically and the internal-build of MLC and SLC are the exactly the same, except that in SLC, one cell contains 1 bit of data. Obviously this means that 2 or more bits occupy one cell in MLC. That’s the only difference from a physical structure of NAND flash. However, if you can see from the diagram below, SLCs has advantages over MLCs.



NAND Flash uses electrical voltage to program a cell and it is always a challenge to store bits of data in a very, very small cell. If you apply too little voltage, the bit in the cell does not register and will result in something unreadable or an error. If you apply too much voltage, the adjacent cells are disturbed and resulting in errors in the flash. Voltage leak is not uncommon.

The demands of packing more and more data (i.e. more bits) into one cell geometry results in greater unreliability. Though the reliability of  the NAND Flash storage is predictable, i.e. we would roughly know when it will fail, we will eventually reach a point where the reliability of MLCs will no longer be desirable if we continue the trend of packing more and more capacity.

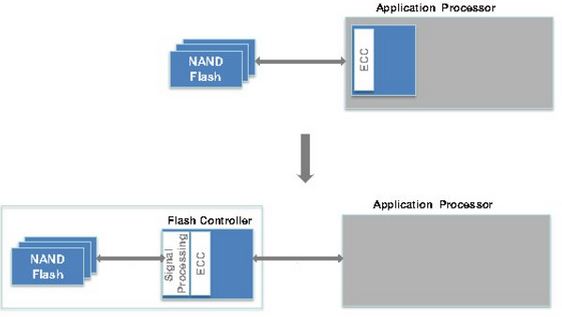

That’s when Anobit comes in. Anobit has designed and implemented architectural changes of the way NAND Flash storage is used. The technology in laymen terms comes in 2 stages.

  1. Error reduction – by understanding what causes flash impairment. This could be cross-coupling, read disturbs, data retention impairments, program disturbs, endurance impairments
  2. Error Correction and Signal Processing – Advanced ECC (error-correcting code), and introducing the patented (and other patents pending) Memory Signal Processing (TM) to improve the reliability and performance of the NAND Flash storage as show in the diagram below:

In a nutshell, Anobit’s new and innovative approach will result in

  • More reliable MLCs
  • Better performing MLCs
  • Cheaper NAND Flash technology

This will indeed extend the NAND Flash technology into greater innovation of flash storage technology in the near future. Whatever Apple will do with Anobit’s technology is anybody’s guess but one thing is certain. It’s going to propel Apple into newer heights.

IDC Worldwide Storage Software QView 3Q11

I did not miss this when the IDC report of worldwide storage software for Q3 2011 was released a couple of weeks ago. I was just too busy to work on it until just now.

The IDC QView report covers 7 functional areas of storage software:

  • Data protection and recovery software
  • Storage replication software
  • Storage infrastructure software
  • Storage management software
  • Device management software
  • Data archiving software
  • File system software

All areas are growing and Q3 grew 9.7% when compared with the figures of 3Q2010. In the overall software market, EMC holds the top position at 24.5% followed by Symantec (15.3%) and IBM (14.0%). Here’s a table to show the overall standings of the storage software vendors.



In fact, EMC leads in 3 areas of storage infrastructure management, storage management and device management. But the fastest growing area is data archiving software with a pace of 12.2% following by storage and device management of 11.3%.

HP is not in the table, but IDC reported that the biggest growth is coming from HP with a 38.2% growth, boosted by its acquisition of 3PAR. Watch out for HP in the coming quarters. Also worthy of note is the rate Symantec has been experiencing. Their was only 2.2% and IBM, at #3, is catching up fast. I wonder what’s happening in Symantec having seeing them losing their lofty heights in recent years.

The storage software market is a USD$3.5 billion market and it is the market that storage vendors are placing more importance. This market will grow.

Captain Dynamo Storage System

My research on file systems brought me to an very interesting piece of article. It is titled “Dynamo: Amazon’s Highly Available Key-Value Store” dated 2007.

Yes, this is an internal storage systems designed and developed in Amazon to scale and support Amazon Web Services (AWS). It is a very complex piece of technology and the paper is highly technical (not for the faint of heart). And of all places, Amazon is probably the last place you think you would find such smart technology, but it’s true. AWS engineers are slowly revealing the many of their innovations (think Amazon Silk browser technology).

And it appears that many of the latest cloud-based computing and services companies such as Amazon, Google and many others have been developing new methods of storing data objects. These methods are very different from the traditional methods of storing data, and many are no longer adopting the relational database model (RDBMS) to scale their business.

The traditional 3-tier architecture often adopted by web-based (before the advent of “cloud”), is evolving. As shown in the diagram below:

the foundation tier is usually a relational database (or a distributed relational database), communicating with the back-end storage (usually a SAN).

All that is changing because the relational database model is not keeping up with the tremendous pace of the proliferation of web-based and cloud-based objects or unstructured data. As explained by Alex Iskold, a writer of ReadWriteWeb, there are scalability issues with the conventional relational database.



Before I get to the scalability issues mentioned in the above diagram, let me set the floor for discussion.

For theoretical schoolers of relational database, the term ACID defines and guarantees the transactional reliability of relational databases. ACID stands for Atomicity, Consistency, Isolation and Durability. According to Wikipedia, “transactions provide an “all-or-nothing” proposition, stating that each work-unit performed in a database must either complete in its entirety or have no effect whatsoever. Further, the system must isolate each transaction from other transactions, results must conform to existing constraints in the database, and transactions that complete successfully must get written to durable storage.”

ACID has been the cornerstone of relational database from the very beginning. But as the demands of greater scalability and greater distribution of data, all 4 components of ACID – Atomicity, Consistency, Isolation, Durability – can no longer hold true. Hence, the CAP Theorem.

CAP Theorem (aka Brewer’s Theorem) stands for Consistency, Availability and Partition Tolerance. In the ACM (Association of Computing Machinery) conference in 2000, Eric Brewer of University of California, Berkeley delivered the theorem. It states that it is impossible for a distributed computer system (or a database system) to simultaneously guarantee all 3 components – Consistency, Availability and Partition Tolerance.

Therefore, as the database systems become more and more distributed in cyberspace, the ACID theorem begins to break down. All 4 components of ACID cannot be guaranteed simultaneously anymore as the database systems begin to become more and more distributed.

So when we get back to the diagram, both the concepts on left and right – Master/Slave OR Multiple Peers – will put a tremendous strain on the single, non-distributed relational database.

New data models are surfacing to handling the very distributed data sets. Distributed object-based  “file systems” and NoSQL type of databases are some of the unconventional data storage “systems” that are beginning to surface as viable alternatives to the relational database method in cyberspace. And one of them is the Amazon Dynamo Storage System. (ADSS)

ADSS is a highly available, Amazon-proprietary key-value distributed data store. ADSS has both the properties of distributed hash table and a database and it is used internally to power various Cloud Services in Amazon Web Services (AWS).



It behaves like a relational database where it stores data objects to be retrieved. However, the data objects are not stored in a table format of a conventional relational database. Instead, the data is stored in a distributed hash table and data content or value is retrieved with a key, hence a key-value data model.

The data content is stored and retrieved through a simple put and get interface, much like how RESTful would do it. From the article in ReadWriteWeb, here’s how Dynamo works:

  • Physical nodes are thought of as identical and organized into a ring.
  • Virtual nodes are created by the system and mapped onto physical nodes, so that hardware can be swapped for maintenance and failure.
  • The partitioning algorithm is one of the most complicated pieces of the system, it specifies which nodes will store a given object.
  • The partitioning mechanism automatically scales as nodes enter and leave the system.
  • Every object is asynchronously replicated to N nodes.
  • The updates to the system occur asynchronously and may result in multiple copies of the object in the system with slightly different states.
  • The discrepancies in the system are reconciled after a period of time, ensuring eventual consistency.
  • Any node in the system can be issued a put or get request for any key

The Dynamo architecture addresses the CAP Theorem well. It is highly available, where nodes, either physical or virtual,  can be easily swapped without affected the storage services. It is also high performance, nodes (again physical or virtual) can be added to boost the performance. The high performance and highly available components addresses the “A” piece of CAP.

Its distributed nature also allows it to scale to billions and billions of data objects and hence meets the “P” requirement of CAP. The Partitioning Tolerance is definitely there.

However, as stated by CAP Theorem, you can’t have all 3 happening at the same time. Therefore, the “C” or Consistency piece of CAP has to be compromised. That is why Dynamo has been labeled an “eventually consistency” storage system.

As data is stored into ADSS, the changes of the data is propogated and will be asynchronously replicated to other nodes in the system, eventually making all the data objects and its value consistent. However, given the speed of things in cyberspace and the nature of most Cloud Computing services, the consistency piece could be difficult to accomplish and that is OK because in most of the transactions that are distributed, inconsistency is acceptable.

So that’s a bit about the Amazon Dynamo. Alas, we may never get our grubby hands on this piece of cool data storage and management technology, but knowing that Dynamo is powering AWS and its business is an eye-opener for us into the realm of a new technology evolution.

Is there IOPS for Cloud Storage? – Nasuni style

I was in Singapore last week attending the Cloud Infrastructure Services course.

In the class, one of the foundation components of Cloud Computing is of course, storage. As the students and the instructor talked about Storage, one very interesting argument surfaced. It revolved around the storage, if it was offered on the cloud. A lot of people assumed that Cloud Storage would be for their databases, and their virtual machines, which of course, is true when the communication between the applications, virtual machines and databases are in the local area network of the Cloud Service Provider (CSP).

However, if the storage is offered through the cloud to applications that are sitting on-premise in the customer’s server room, then we have to think twice of how we perceive Cloud Storage. In this aspect, the Cloud Storage offered by the CSP is a Infrastructure-as-a-Service (IaaS), where the key service is Storage. We have to differentiate that this Storage functions as a data container, and usually not for I/O performance reasons.

Though this concept probably will be easily understood by storage professionals like us, this can cause a bit confusion for someone new to the concept of Cloud Computing and Cloud Storage. This confusion, unfortunately, is caused by many of us who are vendors or solution providers, or even publications and magazines. We are responsible to disseminate correct information to customers, but due to our lack of knowledge and experience in this extremely new market of Cloud Storage, we have created the FUDs (Fear, Uncertainty and Doubt) and hype.

Therefore, it is the duty of this blogger to clear the vapourware, and hopefully pass on the right information to accelerate  the adoption of Cloud Storage in the near future. At this moment, given the various factors such as network costs, high network latency and lack of key network technologies similar to LAN in Cloud Computing, Cloud Storage is, most of the time, for data storage containership and archiving only. And there are no IOPS or any performance related statistics related to Cloud Storage. If any engineer or vendor tells you that they have the fastest Cloud Storage in the industry, do me a favour. Give him/her a knock on the head for me!

Of course, as technologies evolve, this could change in the near future. For now, Cloud Storage is a container, NOT a high performance storage in the cloud. It is usually not meant for transactional data. There are many vendors in the Cloud Storage space from real CSPs to storage companies offering re-packaged storage boxes that are “cloud-ready”. A good example of a CSP offering Cloud Storage is Amazon S3 (Simple Storage Service). And storage vendors such as EMC and HDS are repackaging and rebranding their storage technologies as object storage, ready for the cloud. EMC Atmos is really a repackaged and rebranded Centera, with some slight modifications, while HDS , using their Archiving solution, has HCP (aka HCAP). There’s nothing wrong with what EMC and HDS have done, but before the overhyping of the world of Cloud Computing, these platforms were meant for immutable data archiving reasons. Just thought you should know.

One particular company that captured my imagination and addresses the storage performance portion is Nasuni. Of course, they are quite inventive with the Cloud Storage Gateway approach. Nasuni comes up with a Cloud Storage Gateway filer appliance, which can be either a physical 1U server or as a VMware or Hyper-V virtual appliance sitting on-premise at the customer’s site.

The key to this is “on-premise”, which allows access to data much faster because they are locally-cached in the Nasuni filer appliance itself. This Nasuni filer piece addresses the Cloud Storage “performance” piece but Nasuni do not claim any performance statistics with such implementation. The clever bit is that this addresses data or files that are transactional in nature, i.e. NFS or CIFS, to serve data or files “locally”. (I wonder if Nasuni filer has iSCSI as well. Hmmmm….)

In the Nasuni architecture, they “break up” their “Cloud Storage” into 2 pieces. Piece #1 sits on-premise, at the customer site, and acts as a bridge to the Piece #2, that is sitting in a Cloud Storage. From a simplified view, have a look at the diagram below:





Piece #1 is the component that handles some of the transactional traffic related to files. In a more technical diagram below, you can see that the Nasuni filer addresses the file sharing portion, using the local disks on the filer appliance as a local caching mechanism.



Furthermore, older file pieces are whiffed away to the any Cloud Storage using the Cloud Connector interface, hence giving the customer a sense that their storage capacity needs can be limitless if they want to (for a fee, of course). At the same time, the Nasuni filer support thin provisioning and snapshots. How cool is that!

The Cloud Storage piece (Piece #2) is used for the data container and archiving reasons. This component can be sitting and hosted at Amazon S3, Microsoft Azure, Rackspace Cloud Files, Nirvanix Storage Delivery Network and Iron Mountain Archive Services Platform.

The data communication and transfer between the Nasuni filer is secure, encrypted, deduplication and compressed, giving it the efficiency and security that most customers would be concerned about. The diagram below explains the dat communication and data transfer bit.
