SMB on steroids but CIFS lord isn’t pleased

I admit it!

I am one of the guilty parties who continues to use CIFS (Common Internet File System) to represent the Windows file sharing protocol. And a lot of vendors continue to use the “CIFS” word loosely without knowing that it was a something from a bygone era. One of my friends even pronounced it as “See Fist“, which sounded even funnier when he said it. (This is for you Adrian M!)

And we couldn’t be more wrong because we shouldn’t be using the CIFS word anymore. It is so 90’s man! And the tell-tale signs have already been there but most of us chose to ignore it with gusto. But a recent SNIA Webinar titled “SMB 3.0 – New opportunities for Windows Environment” aims to dispel our incompetence and change our CIFS-venture to the correct word – SMB (Server Message Block).

A selfie photo of Dennis Chapman, Senior Technical Director for Microsoft Solutions at NetApp from the SNIA webinar slides above, wants to inform all of us that … SMB History (more…)

AoE – All about Ethernet!

This is long overdue.

A reader of my blog asked if I could do a piece on Coraid. Coraid who?

This name is probably a name not many people heard of in Malaysia. Even most the storage guys that I talk to never heard of it.

I have known about Coraid for a few years now (thanks to my incessant reading habits), looking at it from nonchalant point of view.  But when the reader asked about Coraid, I contacted Kevin Brown, CEO of Coraid, whom I am not exactly sure how I was connected through LinkedIn. Kevin was very responsive and got one of their Directors to contact me. Kaushik Shirhatti was his name and he was very passionate to share their Coraid technology with me. Thanks Kevin and Kaushik!

That was months ago but the thought of writing this blog post has been lingering. I had to scratch the itch. ;-)

So, what’s up with Coraid? I can tell that they are different but seems to me that their entire storage architecture is so simple that it takes a bit of time for even storage guys to wrap their head around it. Why do I say that?

For storage guys (like me), we are used to layers. One of the memorable movie quotes I recalled was from Shrek: “Orges are like onions! Onions have layers!“.

(more…)

“Cloud” hosting hacked – customer data lost

Yes, Yes, I have been inactive for almost 2 months. There were many things I had to do to put my business back into shape again, and hence my lack of activities in my blog.

Yes, Yes, I have a lot of catching up to do, but first I would like to report that one of the more prominent web hosting companies (many of who frequently brand themselves as “Cloud” companies) in Malaysia have been hacked.

I got the news at about 8.00am on September 28th morning and I was in Bangalore, India. Friend of mine buzzed me on Facebook Messenger, and shared with me the following:

Thursday, September 27, 2012 1:46 AM
Date: 27th Sep 2012
Time: 6.01PM GMT +0800

We have an intrusion incident that happened early this morning around 12midnight of 27th September 2012. About 50 customers’ Virtual Machines hosted on our CLOUD were deleted from the cloud server. When we spotted the abnormal behavior, we managed to stop the intruder from causing more damages to our system.

From our initial investigation, we suspect one of our employees who will leave the company at this month end logged into one of our control panels and deleted some Virtual Machines. The backup was terminated at the same time when the Virtual Machines were deleted.

At this point of time, our team is working relentlessly on restoring the affected virtual machines and customer data.

In the mean time, my COO is lodging a police report and my manager is lodging a report to MyCERT while I am writing this email.

We are truly sorry about the whole incident as it has caused a great deal of inconvenience to our customers and their end customers as well.

Please also be rest assured that our CLOUD is truly secured; this incident was not a successful hacking attempt but rather sabotage via an ordinary login.

Detailed investigation reports will be compiled and sent to our customers.

Sincerely,

Chan Kee Siak
Founder and CEO

===================================
Summary / History of issues:
===================================
27th Sep 2012,

1.00am:
- We detected several virtual machines on the cloud were throwing warning signals.
- Technical Managers were immediately informed.

01.30am:
- We found out that an intruder was attempting to delete some of the virtual machines on our CLOUD cluster.
- The intruder was using a valid login to access our CLOUD control panel.
- COO was informed, signed in to co-ordinate.
- The access of the intruder has been disabled to prevent further damage.
- We posted an announcement at: https://support.exabytes.com.my/News/2248/c...aintenance.aspx

02.00am:
- CEO was informed.
- We found out that the intruder was using the login ID and password which belonged to one of the staff members whom we had recently sent out termination notice. The last working day of this staff was end of this month.
- Around 50++ Virtual Machines / VPS were affected.
- We started to inform affected customers.

02.30am:
- Rebuild and restoration of virtual machines began.

10.00am:
- Some Virtual Machines were Restored. The rest were still pending, on going.
- For Virtual machines without extra R1Soft Backup, we have recreated blank virtual machines with Operating System.

12:30pm:
- Attempted to recover the deleted backup on the CLOUD Backup server via data recovery tool. No guarantee and no ETA yet, we were doing our very best.

5.39pm:
- 80% of virtual machines were recreated. However, some were without the latest backup of data.
- Our engineers were attempting to recover the Cloud Backup Hard Drive with the use of recovery tool. However, as the size was huge, it might take few more hours.

Damage:
- The CLOUD Accounts, Virtual Machines and CLOUD Backup of affected clients were deleted. Only client with additional R1Soft backup still has the recent backup.

=================================

Date: 27th September 2012
Time: 1:55 AM GMT+8

Maintenance Details:
We have been alert by our monitoring system that certain Cloud VM has been found to be inaccessible. Our senior admin engineers are now working to resolve the issues.

Maintenance effect:
VMs affected isolated under MY-CLOUD-02 Zone.

We regret for any inconveniences caused.

Best regards,

Support team
------------------
Technical Support Department.

(more…)

“Ugly Yellow Box” bought by private equity firm

Security is BIG business, probably even bigger than storage and with more “sex” appeal and pazzazz! My friends are owners of 2 of the biggest security distributors in town, so I know. I am not much of a security guy, but I reason I write about Bluecoat is that this company has something close to my heart.

In the early 2000, NetApp used to have a separate division that is not storage. They have a product called NetCache, which is a web proxy solution. It was a pretty decent product and one of the competitors we frequently encounter on the field was an “ugly yellow box” called CacheFlow. Whenever we see an “ugly yellow box” in a rack, we will immediately know that it was a CacheFlow box. NetApp competed strongly with Cache Flow, partly because their CEO and founder, Brian NeSmith, as we NetAppians were told, was ex-NetApp. And there was some animosity between Brian and NetApp, up to the point that I recalled NetApp’s CEO then, Dan Warmenhoven, declaring that “NetApp will bury CacheFlow!“, or something of that nature. At that point, in the circa of 2001-2002, CacheFlow was indeed in a bit of a rut as well. They suffered heavy losses and was near bankcruptcy. A old news from Forbes confirmed Brian NeSmith’s near-bankcruptcy adventure.



CacheFlow survived the rut, changed their name to Bluecoat Systems, and changed their focus from Internet caching to security. Know why they are know as “Bluecoat”? They are the policemen of the Internet, and policemen are men in blue coats. I found an old article from Network World about their change.  And they decided not to paint their boxes yellow anymore. ;-)



Eventually, it was CacheFlow who triumphed over NetApp. And the irony was NetApp eventually sold the NetCache unit and its technology to BlueCoat in 2006. And hence, that my account of the history of Bluecoat.

Yesterday, Bluecoat was on the history books again, but for a better reason. A private equity firm, Thoma Bravo, has put in USD$1.3 billion to acquire Bluecoat. News here and here.

Have a happy Sunday :D

Betcha don’t encrypt your disks

At the Internet Alliance event this morning, someone from Computerworld gave me a copy of their latest issue. The headline was “Security Incidents Soar”, with the details of the half-year review by CyberSecurity Malaysia.

Typically, the usual incidents list evolve around spam, intrusions, frauds, viruses and so on. However, storage always seems to be missing. As I see it, storage security doesn’t sit well with the security guys. In fact, storage is never the sexy thing and it is usually the IPS, IDS, anti-virus and firewall that get the highlights. So, when we talk about storage security, there is so little to talk about. In fact, in my almost 20-years of experience, storage security was only brought up ONCE!

In security, the most valuable piece of asset is data and no matter where the data goes, it always lands on …. STORAGE! That is why storage security could be one of the most overlooked piece in security. Fortunately, SNIA already has this covered. In SNIA’s Solid State Storage Initiative (SSSI), one aspect that was worked on was Self Encrypted Drives (SED).

SED is not new. As early as 2007, Seagate already marketed encrypted hard disk drives. In 2009, Seagate introduced enterprise-level encrypted hard disk drives. And not surprisingly, other manufacturers followed. Today, Hitachi, Toshiba, Samsung, and Western Digital have encrypted hard disk drives.

But there were prohibitive factors that dampened the adoption of self-encrypted drives. First of all, it was the costs. It was expensive a few years ago. There was (and still is) a lack of knowledge between the hardware of Self Encrypted Drives (SED) and software-based encryption. As the SED were manufactured, some had proprietary implementations that did not do their part to promote the adoption of SEDs.

As data travels from one infrastructure to another, data encryption can be implemented at different points. As the diagram below shows,



encryption can be put in place at the software level, the OS level, at the HBA, the network itself. It can also happen at the switch (network or fabric), at the storage array controller or at the hard disk level.

EMC multipathing software, PowerPath, has an encryption facility to ensure that data is encryption on its way from the HBA to the EMC CLARiiON storage controllers.

The “bump-in-the-wire” appliance is a bridge device that helps in composing encryption to the data before it reaches the storage. Recall that NetApp had a FIPS 140 certified product called Decru DataFort, which basically encrypted NAS and SAN traffic en-route to the NetApp FAS storage array.

And according to SNIA SSSI member, Tom Coughlin, SED makes more sense that software-based security. How does SED work?

First of all, SED works with 2 main keys:

  • Authentication Key (AK)
  • Drive Encryption Key (DEK)

The DEK is the most important component, because it is a symmetric key that encrypts and decrypts data on the HDDs or SSDs. This DEK is not for any Tom (sorry Tom), Dick and Harry. In order to gain access to DEK, one has to be authenticated and the authentication is completed by having the right authentication key (AK). Usually the AK is based on a 128/26-bit AES or DES and DEK is of a higher bit range. The diagram below shows the AK and DEK in action:

Because SED occurs at the drive level, it is significantly simpler to implement, with lower costs as well. For software-based encryption, one has to set up some form of security architecture. IPSec comes to mind. This is not only more complex, but also more costly to implement as well. Since it is software, the degree of security compromise is higher, meaning, the security model is less secure when compared to SED. The DEK of the SED does not leave the array, and if the DEK is implemented within the disk enclosure or the security module of SoC (System-on-Chip), this makes even more secure that software-based encryption. Also, the DEK is away from the CPU and memory, thus removing these components as a potential attack vendor that could compromise the data on the disks drives.

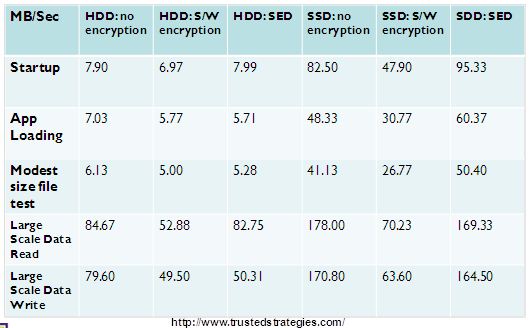

Furthermore, software-based encryption takes up CPU cycles, thus slows down the overall performance. In the Tom Coughlin study, based on both SSDs and HDDs, the performance of SED outperforms software-based encryption every time. Here’s a table from that study:

Another security concern is about data erasure. According to an old IBM study, about 90% of the retired HDDs still has data that is readable. That means that data erasure techniques used are either not implemented properly or simply not good enough. For us in the storage industry, an effective but time consuming technique is to overwrite the entire disks with 1s and reusing it. But to hackers, there are ways to “undelete” these bits and make the data readable again.

SED provides crypto erasure that is both effective and very quick. Since the data encryption key (DEK) was used to encrypt and decrypt data, the DEK can be changed and renewed in split seconds, making the content of the disk drive unreadable. The diagram below shows how crypto erasure works:

Data security is already at its highest alert and SEDs are going to be a key component in the IT infrastructure. The open and common standards are coming together, thanks to efforts to many bodies including SNIA. At the same time, product certifications are coming up and more importantly, the price of SED has come to the level that it is almost on par with normal, non-encrypted drives.

Hackers and data thieves are getting smarter all the time and yet, the security of the most important place of where the data rest is the least considered. SNIA and other bodies hope to create more awareness and seek greater adoption of self encrypted drives. We hope you will help spread the word too. Betcha thinking twice now about encrypting your data  on your disk drives now.

iSCSI old CHAP

For folks working on iSCSI, especially the typical implementation engineers, they like to have things easy. “Let’s get this thing working so that I can go home” and usually done without the ever important CHAP (Challenge Handshake Authentication Protocol) enabled and configured.

We are quite lax when it comes to storage security and have always assumed that storage security is inherent in most setup, especially Fibre Channel. Well, let me tell you something, buddy. IT’S NOT! Even Fibre Channel has inherent vulnerability; it’s just that not many technical folks know about the 5 layers of Fibre Channel and it doesn’t mean that Fibre Channel is secure.

As the world turns to more iSCSI implementations, the fastest and easiest way to get a iSCSI connection is to do it without CHAP in the LAN, and CHAP authentication is not enabled by default. And this is happening in the IP world, not Fibre Channel, where there are more sniffers and hackers lurking. But even with CHAP applied, there are ways that CHAP can be broken and iSCSI security can be compromised easily. Below is the typical Windows iSCSI connection screenshot.

First of all, CHAP communication goes through back and forth in the network in clear-text, and the packets are easily captured. Then the hacker can take its own sweet time brute forcing to obtain the CHAP’s encrypted password, challenge and username.

iSCSI communication happens over the popular TCP port of 3260. This gives the hacker a good idea what he/she is able to do. They could sniff out the packets that is going through the wire from their computer but the hacker probably won’t do that. They would use another computer, one that has been compromised and trusted in the network.

From this compromised computer, the hackers would initiate a man-in-the-middle (MITM) attack. They can easily redirect the iSCSCI packets to this compromised computer to further their agenda. I found a nice diagram from SearchStorage about the iSCSI MITM attack and I shared it below.

A highly popular utility used in MITM attacks is one called Cain and Abel. Using a technique called ARP Cache Poisoning or ARP Poison Routing (APR), the compromised computer is able to intercept the iSCSI communication between the iSCSI initiator and the iSCSI target. The intercepted iSCSI packets can then be analyzed by Wireshark, the free and open source packet analyzer.

As Wireshark is capturing and analyzing the iSCSI packets, all the iSCSI communication that is happening between the initiator and the target is read in clear-text. The IQN number, the username are in clear-text as well. As Wireshark follows the TCP stream, the hacker will be looking out for a variable called “CHAP_N=iscsisecurity” and followed by “CHAP_R which equates to the encrypted password in the CHAP authentication. It will probably be in hexadecimal and begins with “Ox….“.

Voila, your encrypted iSCSI password, which now can be hacked in brute-force offline. It’s that easy folks!

Either way, having configured CHAP enabled is still better than no authentication at all (which most of us are likely to do during iSCSI setup). There are other ways to make the iSCSI communication more secure and IPSec is one of the considerations. But usually, we as techies have to balance between security and performance and we would end up choosing performance, relaxing the security bit.

But the exposure of iSCSI in the IP world is something we should think more about. Instead of having the easy way out, at least enable CHAP, old chap. OK?
